10% Ekonol Filled with 90% PTFE Virgin Tube

10% Ekonol Filled with 90% PTFE Virgin Tube

​Ekonol aromatic polyester fillers are a key component in extending the life of parts & components made from PTFE compounds. The exceptional properties of Ekonol PTFE fillers provide maximum wear resistance, dimensional stability & corrosion resistance for molded or extruded parts in demanding services.

Model:KXT EP 980

Send Inquiry

Product Description

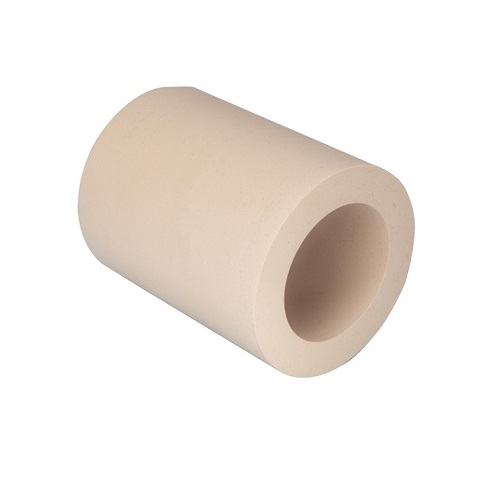

10% Ekonol Filled with 90% PTFE Virgin Tube


Style KXT EP980-10 10% Ekonol Filled with 90% PTFE Virgin Tube

Ekonol aromatic polyester fillers are a key component in extending the life of parts & components made from PTFE compounds. The exceptional properties of Ekonol PTFE fillers provide maximum wear resistance, dimensional stability & corrosion resistance for molded or extruded parts in demanding services.


The highly crystalline Ekonol polymer yields unparalleled thermal stability along with good creep resistance & excellent load-bearing capacity. These features make Ekonol polyester PTFE fillers the ideal filler for PTFE compounds to increase service life of bearings, seals, rotors & related parts.


Whereas glass fillers can be abrasive, Ekonol fillers’ round particle shape will not wear soft metal surfaces. Additionally, Ekonol/PTFE blends resist self-wear better than other PTFE compositions, with good lubricity on molded parts



Data sheet

Property

Test Method

Values

Specific Gravity

ASTM D 4894

2.2g/cm3

Tensile Strength

ASTM D 4894

10-15 mpa

Elongation

ASTM D 4894

180-250%

Shore D Hardness

ISO 868

56

Temperature Range

-

-200 oC - 260 oC

Material

-

10% ekonol +PTFE
