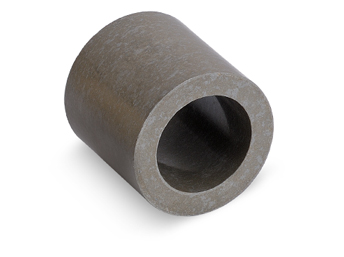

Stainless Steel Filled PTFE Tube is extremely hard wearing, has excellent strength and stability under extreme loads and elevated temperatures whilst still retaining the low coefficient of friction of conventional PTFE. It is an extremely versatile product and can be used on Steam and Thermal Fluid applications.
It is also an extremely good seat material for use in V-Ball type Flow Control Ball Valve applications due to its high resistance to wear.
Advantages:
• Increased thermal and electrical conductivity
• Excellent under extreme temperatures
• Lowers creep, cold flow and wear
• Excellent under extreme loads
• Extremely hard wearing
Application:
• Seats in steam valves
• Thermal fluid area
• Food application
• Seals., etc
|
Property |
Test Method |
Values |
|
Specific Gravity |
ASTM D 4894 |
3.2-3.4g/cm3 |
|
Tensile Strength (min) |
ASTM D 4894 |
22 mpa |
|
Elongation (min) |
ASTM D 4894 |
220% |
|
Shore D Hardness |
BS EN 13000-2 |
66-70 |
|
Temperature Range |
- |
-200 oC - 260 oC |
|
Material |
- |
SS with PTFE powder |
