PTFE TEFLON TUBE

PTFE TEFLON TUBE

We are the leading supplier of the ptfe tubes. The all manufacturing process is design in such a way that minimizes the cost of the production. Our ptfe tubing is appreciated and favored by the customers for their performance. Consisting of all characteristics of ptfe, which is an ideal raw material among all plastics. It has internally smooth structure, which made it very strong and flexible. It consists anti friction, anti-brokage and anti-blockage characteristic. It's highly resistant to the corrosive chemicals. It also consists of good dielectric strength and good tensile strength.

Send Inquiry

Product Description

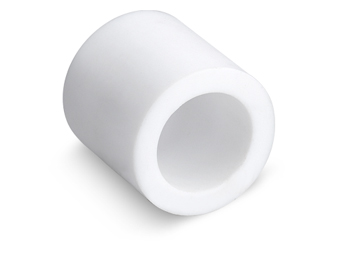

PTFE Tubes

We are the leading supplier of the ptfe tubes. The all manufacturing process is design in such a way that minimizes the cost of the production. Our ptfe tubing is appreciated and favored by the customers for their performance. Consisting of all characteristics of ptfe, which is an ideal raw material among all plastics. It has internally smooth structure, which made it very strong and flexible. It consists anti friction, anti-brokage and anti-blockage characteristic. It's highly resistant to the corrosive chemicals. It also consists of good dielectric strength and good tensile strength.



Advantages

• High strength against pressure

• High temperature resistant

• High dielectric strength

• Non-contaminating

• Smooth inner surface

• Abrasion resistance

• Anti-corrosive

• Anti-friction

• Flexible.



Application:

• Fluid Transfer Devices and Water Processing Systems

• Chemical & Pharmaceutical Manufacturing

• Aerospace &Transportation Technology

• Components & Insulators

• Environmental Science

• Air Sampling

• Electronics



Data Sheet

Property

Value

Unites

Method

Mechanical Properties

Tensile Strength, 23°C

17-23

Mpa

-

Elongation at break, 23°C

200-500

%

-

Flexural strength, 23°C

No break at flexure


D 790

Impact Strength

No break

-

-

Yield Strength at 23°C

1450

Psi

-

Density

2.12-2.17

gm/cu.cm

-

Thermal Properties

Coefficient of Linear Expansion 20-100°C

12 x 10-5

K-1

D 696

Melting Point

327

°C

-

Thermal Conductivity

0.25

W/m/deg K

-

Serevice Temperature

260

°C

-

Processing Temperature

370-395

°C

-

Electrical Properties

Dielectric Strength, short time, 2mm

18

Volts/mum

-

Surface Arc-Resistance

>300 (does not track)

sec

D 495

Volum Resistivity, dry, @ 50% RH

>1018

ohm-cm

D 257

Dielectric Constant, 60 to 2 x 109 cps

2.1

ε

D 150-81

Other Properties

Flame Rating+

VE-0

-

UL-94

Resistance to Weathering

Excellent

-

-

Specific Gravity

2.12-2.17

-

D 792-66 (1979)

Coefficient of friction

0.27-0.67

-

D 1894
