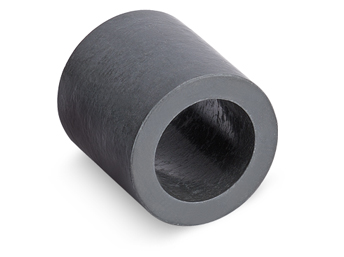

Nickel Filled PTFE Tube Same good physical and chemical properties with better creep behavior than virgin PTFE Good for anti-extrusion rings, back-up rings, guide rings and in chevron packing sets Some chemicals may not be compatible with the fillers
Advantages:
• Increased thermal and electrical conductivity
• Excellent under extreme temperatures
• Lowers creep, cold flow and wear
• Excellent under extreme loads
• Extremely hard wearing
Application:
• Chevron packing sets
• Anti-extrusion rings
• Back-up rings
• Guide rings., etc
|
Property |
Test Method |
Values |
|
Specific Gravity |
ASTM D 4894 |
3.2-3.4g/cm3 |
|
Tensile Strength (min) |
ASTM D 4894 |
22 mpa |
|
Elongation (min) |
ASTM D 4894 |
220% |
|
Shore D Hardness |
BS EN 13000-2 |
66-70 |
|
Temperature Range |
- |
-200 oC - 260 oC |
|
Material |
- |
Nickel with PTFE powder |
