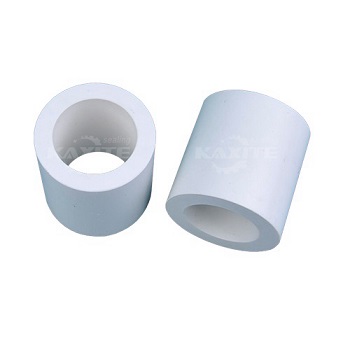

25% Glass Fiber Filled Teflon PTFE Tube

25% Glass Fiber Filled Teflon PTFE Tube

25% Glass fiber Filled PTFE tube reinforced with 25% glass fibres depending on the needs of the application. Glass fiber is used as a PTFE filler as it offers much improved compression and wear properties. The material may also be inert gas sintered to further improve creep properties and reduce porosity and gas permeability (there would be a consequent loss of tensile properties)

Model:KXT GU980-25

Send Inquiry

Product Description

25% Glass Fiber Filled Teflon PTFE Tube

Style KXT GU980-25 25% Glass Fiber Filled Teflon PTFE Tube

25% Glass fiber Filled PTFE tube reinforced with 25% glass fibres depending on the needs of the application. Glass fiber is used as a PTFE filler as it offers much improved compression and wear properties.  The material may also be inert gas sintered to further improve creep properties and reduce porosity and gas permeability (there would be a consequent loss of tensile properties)


Advantages:

 Glass-filled PTFE tube has enhanced strength and stiffness
 Very good electrical insulation properties
 Extremely good chemical resistance.

 Improved dimensional stability

 Enhanced creep resistance

• Good sliding properties



Application:

 Pump and instrument construction

 Food and medical technology
 Chemical engineering parts

 Electrical industry

 Pump housings

 Shaft bearings

 Valve seats


Data sheet

Property

Test Method

Values

Specific Gravity

ASTM D 4894

2.15-2.25g/cm3

Tensile Strength

ASTM D 4894

14-20 mpa

Elongation

ASTM D 4894

>180%

Shore D Hardness

BS EN 13000-2

60-63

Temperature Range

-

-200 oC - 260 oC

Material

-

25% glass fiber+PTFE
