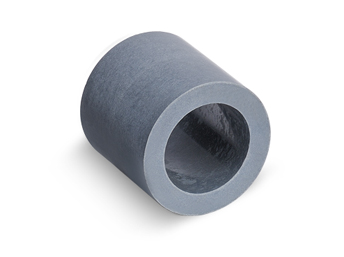

15% Glass Filled and 3% MoS2 Filled PTFE Tube

15% Glass Filled and 3% MoS2 Filled PTFE Tube

15% Glass Filled PTFE tube reinforced with 15% glass fibres depending on the needs of the application. Glass fibre is used as a PTFE filler as it offers much improved compression and wear properties. The material may also be inert gas sintered to further improve creep properties and reduce porosity and gas permeability (there would be a consequent loss of tensile properties) With 3% MoS2 filled shows the same pressure resistance as glass-filled PTFE but uses MoS2 as a lubricant. Molybdenum also increases hardness and decreases wear

Send Inquiry

Product Description

15% Glass Filled and 3% MoS2 Filled PTFE Tube

15% Glass Filled and 3% MoS2 Filled PTFE Tube

Style KXT GU980-15-3 15% Glass Filled and 3% MoS2 Filled PTFE Tube

15% Glass Filled PTFE tube reinforced with 15% glass fibres depending on the needs of the application. Glass fibre is used as a PTFE filler as it offers much improved compression and wear properties. The material may also be inert gas sintered to further improve creep properties and reduce porosity and gas permeability (there would be a consequent loss of tensile properties)


With 3% MoS2 filled shows the same pressure resistance as glass-filled PTFE but uses MoS2 as a lubricant. Molybdenum also increases hardness and decreases wear


Advantages:

• Glass-filled PTFE rod has enhanced strength and stiffness

• Very good electrical insulation properties

• Extremely good chemical resistance.

• Improved dimensional stability

• Enhanced creep resistance

• Good sliding properties


Application:

• Pump and instrument construction

• Food and medical technology

• Chemical engineering parts

• Electrical industry

• Pump housings

• Shaft bearings

• Valve seats


Data sheet

Property

Test Method

Values

Specific Gravity

ASTM D 4894

2.22-2.25g/cm3

Tensile Strength

ASTM D 4894

10-15 mpa

Elongation

ASTM D 4894

100-150%

Shore D Hardness

BS EN 13000-2

65-70

Temperature Range

-

-200 oC - 260 oC

Material

-

15% glassfiber & 3% mos2
